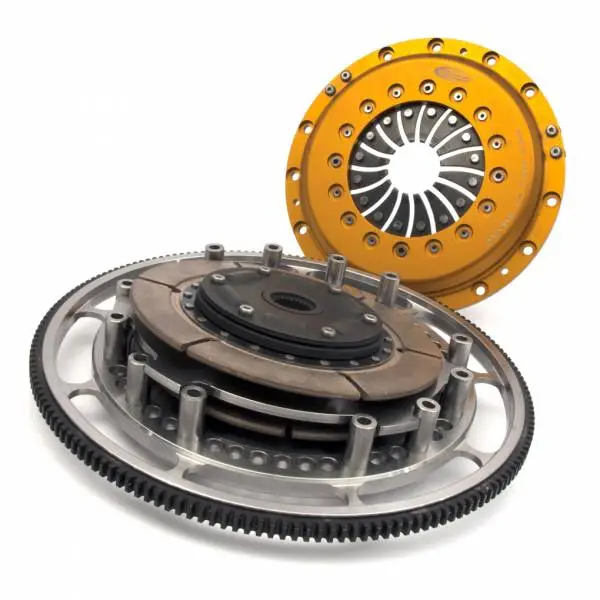

Centerforce DYAD ® XDS 8.75, Clutch and Flywheel Kit (LS Engines)

This clutch/flywheel combination offers very good pedal modulation & feel for autocross standing starts & general street driving.
The overall combined assembly is 31 lbs and offers a much lower moment of inertia than the OEM 10.4″ diameter clutches.
The twin-disc design offers extreme durability for high HP road course time-attack competition.
ARP flywheel bolts & hardware included.
Centerforce part# 814262842
The Centerforce® DYAD® XDS (eXtreme Drive System) 8.75 Inch patented twin-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 800 ft /lbs.

INCLUDES: P.Plate, Discs, Floater, Flywheel, P.P.Bolts, Shim, A.Tool, Pilot Bearing

8.75″ Diameter
222.3mm Diameter
1.125″ x 26 Spline Input Shaft
Holds Up To 750 ft/lbs of Torque
Sprung Hub Disc with Sintered Metallic Material
168 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
Simple Install
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction
Input Shaft Diameter IN: 1.125
Input Spline Quantity: 26
Clutch Disc Diameter IN: 8.75
Clutch Disc Diameter MM: 222.3
Disc Material: Sintered Metallic
Disc Type Sprung Solid: Sprung
Disc Type: Full face
Counterweight Assist: No
Pilot Bushing Included: Yes
Flywheel Crank Bolt Size MM: MM11 x 1.50 x 23
Torque Capacity FTLB: 750
Mounting Hardware Included: Yes
Alignment Tool Included: Yes
Installed Height IN: 2.375
Flywheel Crank Flange Register IN: 2.068
Tooth Quantity: 168
Ring Gear OD IN: 14.105
Crankshaft Bolt Hole Quantity: 6
